Fully automatic winding line for consumer electronic 3C batteries. Supports high shape flexibility, ultra-thin design, and consistent internal resistance. Daily output: tens of thousands of cells.

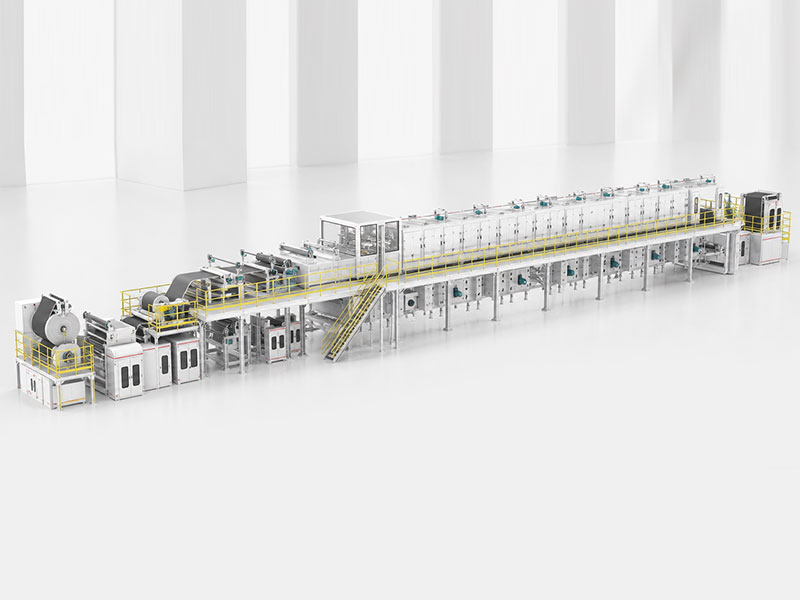

• Coating Method: Slot‑die extrusion, simultaneous double‑side coating
• Effective Coating Width: 600‑1400 mm
• Coating Speed: 40‑100 m/min
• Areal Density Accuracy: ≤±1.0%
• Oven Length: 32‑60 m
• Temperature‑zone Length: 4‑5 m per zone
• Temperature Range: Room temperature ~ 160 ℃

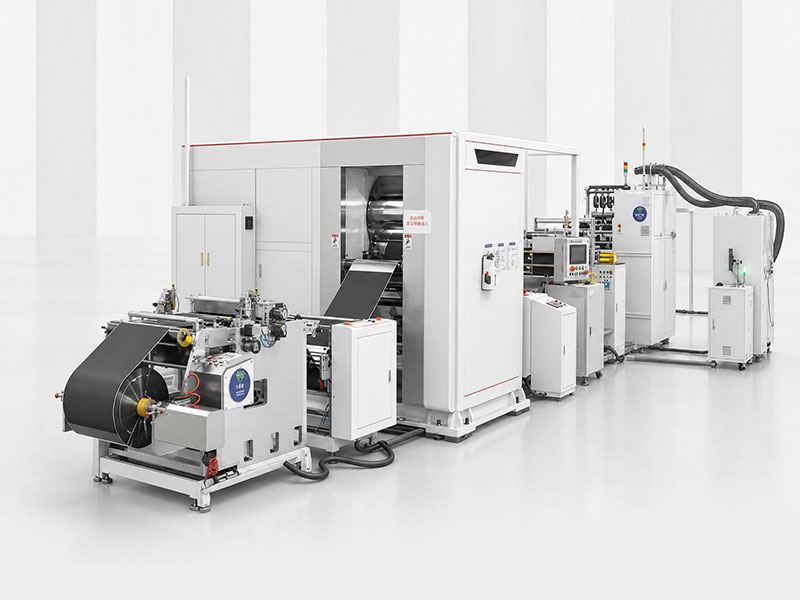

• Calendering Speed: 40‑100 m/min
• Roller Width: 650‑1450 mm
• Web‑guiding Accuracy: ±0.1 mm
• Slitting Tracks: 1‑12 tracks
• Slitting Accuracy: ≤±0.3 mm
• Slitting Burr: ≤10 μm
• Application: Continuous cathode/anode calendering, slitting, cleaning, inspection and automatic roll change.

• Compatible Cell Size: Thickness 1.5‑16 mm; width 30‑110 mm; length 30‑150 mm
• Product Yield: ≥99.8%
• Alignment Accuracy: ≤ 0.2 mm
• Changeover Time: ≤30 min

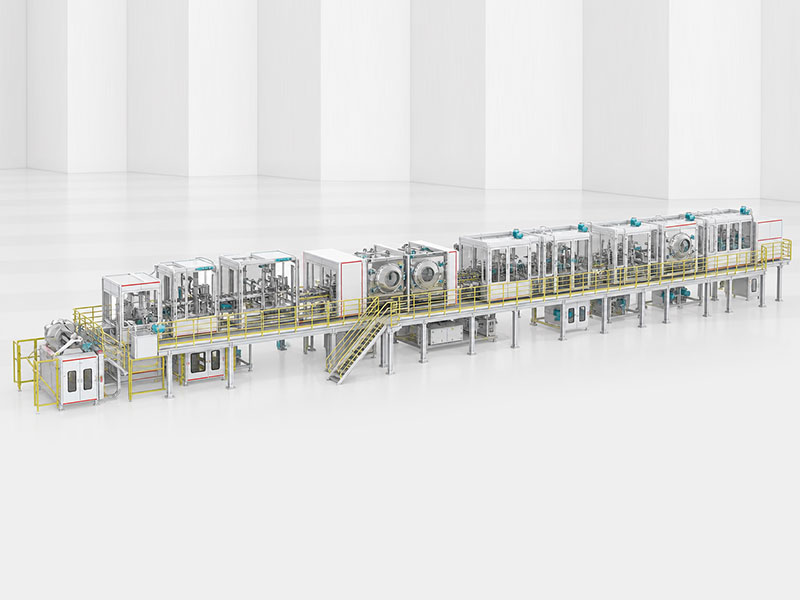

• Application: Integrated mass production for winding, taping, short-circuit testing, tab welding and automated transfer.

• Punching Cavity: Single‑cavity / Dual‑cavity optional
• Sealing Width: 3‑10 mm adjustable
• Filling Method: Chamber‑type high‑vacuum filling
• Vacuum Degree: ≤‑0.095 MPa
• Dry‑room Dew Point: ≤‑45 ℃
• Application: Automated pouch forming, core loading, filling, soaking, top/side sealing, degassing, final sealing and leak testing.
