Custom Pilot Line for Pouch Cells (Stacking R&D Line)

Semi-automatic Z-type stacking pilot line, 50 cells/day. Ideal for university and R&D research on electrode design, interface characteristics, and solid-state batteries.
  • Flexible Capacity
  • Z‑stacking Tech
  • Research‑oriented
  • R&D‑focused

Recommended Products

solution-prodect-ab01
Recommended Products

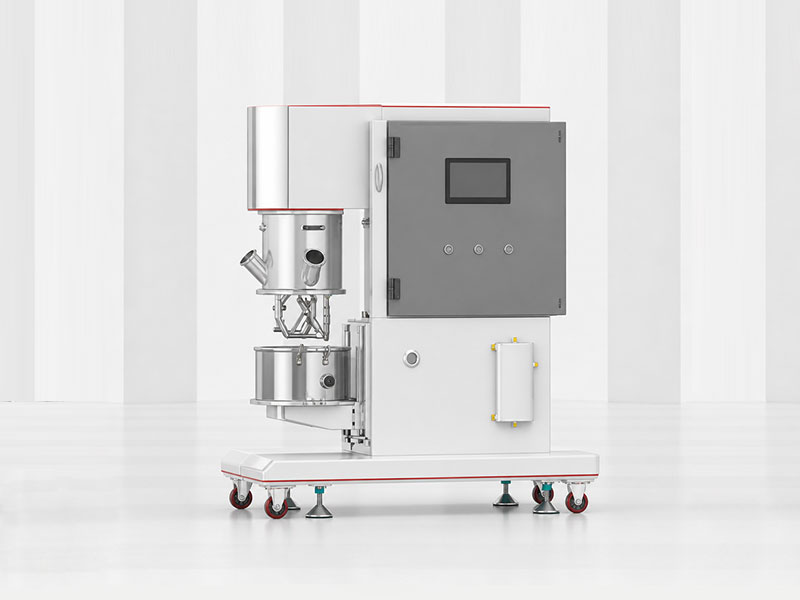

Double-Planetary Mixer

  • Structure: Single-arm design; twin planetary helical blades plus one high-speed dispersing shaft
  • Working Volume: 5 L
  • Speed: Planetary speed 0–61 rpm; Rotation speed 0–95 rpm; Dispersion speed 0–6800 rpm
  • Pressure: Vacuum -0.098 MPa; Jacket Design 0.4 MPa
  • Control: 7-inch touchscreen + PLC + variable-frequency control
Recommended Products

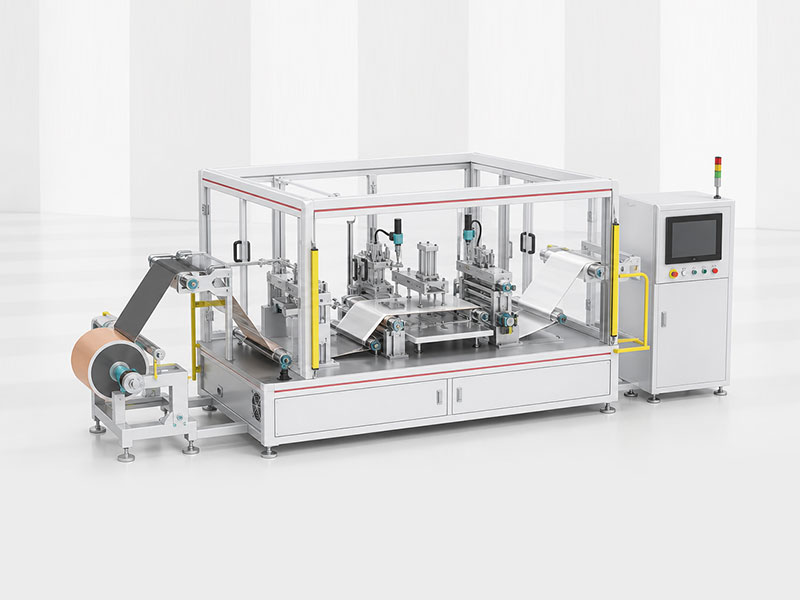

Semi-Automatic Z-Fold Electrode Stacking Machine

  • Alignment Accuracy: ±0.3 ~ ±0.5 mm
  • Electrode Size: 35×35 mm ~ 200×200 mm
  • Stacking Speed: 1‑2.0 s per layer
  • Stacking Layers: 5‑500 layers
  • Application: Semi‑automatic Z‑type stacking for cathode/anode electrodes and separators; lab sample preparation.
solution-prodect-ab02
solution-prodect-ab03
Recommended Products

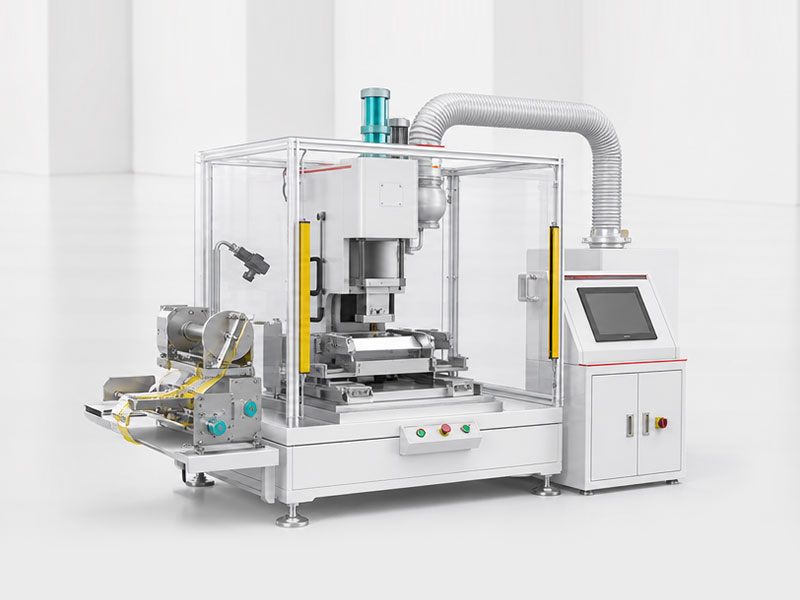

Pouch-Cell Ultrasonic Tab Welding Machine

  • Ultrasonic Frequency: 40 KHz
  • Output Power: 800‑2000 W
  • Welding Time: 0.05‑2.0 s adjustable
  • Amplitude: 15‑40 μm continuously adjustable
  • Application: Al-foil/Al-tab and Cu-foil/Cu or Ni-tab welding; sonotrode and fixture customizable.
Recommended Products

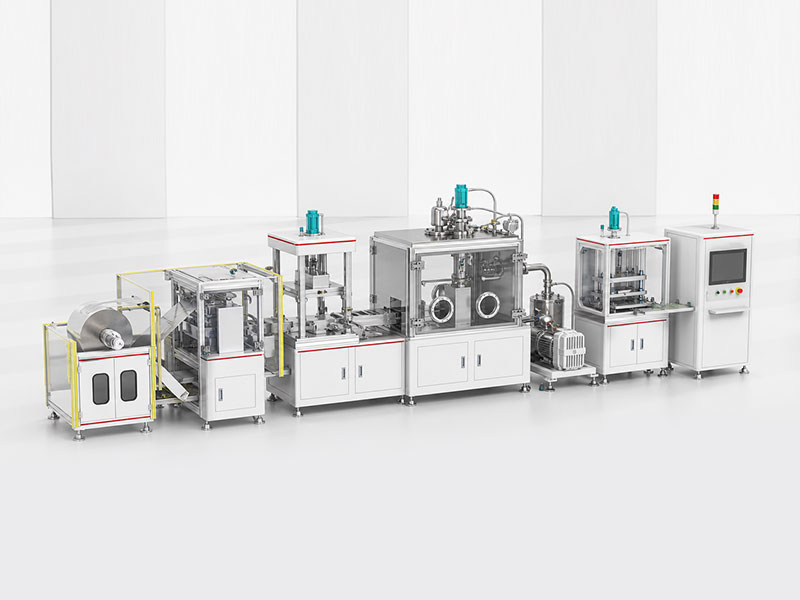

Pouch Forming-Filling-Sealing Line

  • Output: 5‑10 pcs/hour
  • Punching Depth: 0‑6 mm
  • Single Injection Volume: 0.2‑150 ml adjustable
  • Injection Speed: 0.05‑3 ml/s
  • Injection Accuracy: ±5‰ ~ ±7‰
  • Heat‑sealing Temperature: 120‑250 ℃
  • Application: Integrated pouch forming, vacuum electrolyte filling and top/side pre-sealing for pilot production.
solution-prodect-ab04

FAQ

  • What is the daily capacity of this stacking pilot line?

    Daily output around 50‑100 battery cells. It is a semi‑automatic pilot line for lab‑scale sample preparation, not for large‑volume mass production.

  • What is the main difference between stacking and winding pilot line?

    Adopting Z‑type stacking technology as an alternative to winding process, it enables comparative R&D tests between stacking and winding solutions.

  • What kinds of research can be carried out on this line?

    Suitable for electrode structure design, electrode‑separator interface study, solid‑state battery and other cutting‑edge battery research projects.

  • Which institutions are suitable for this stacking pilot line?

    Mainly for universities, research institutes and enterprise R&D departments, delivering differentiated stacking‑process verification solutions.

  • Is the equipment fully‑automatic or semi‑automatic?

    It is a semi‑automatic Z‑stacking pilot line. Designed for high flexibility to support diverse process exploration in research phase.
