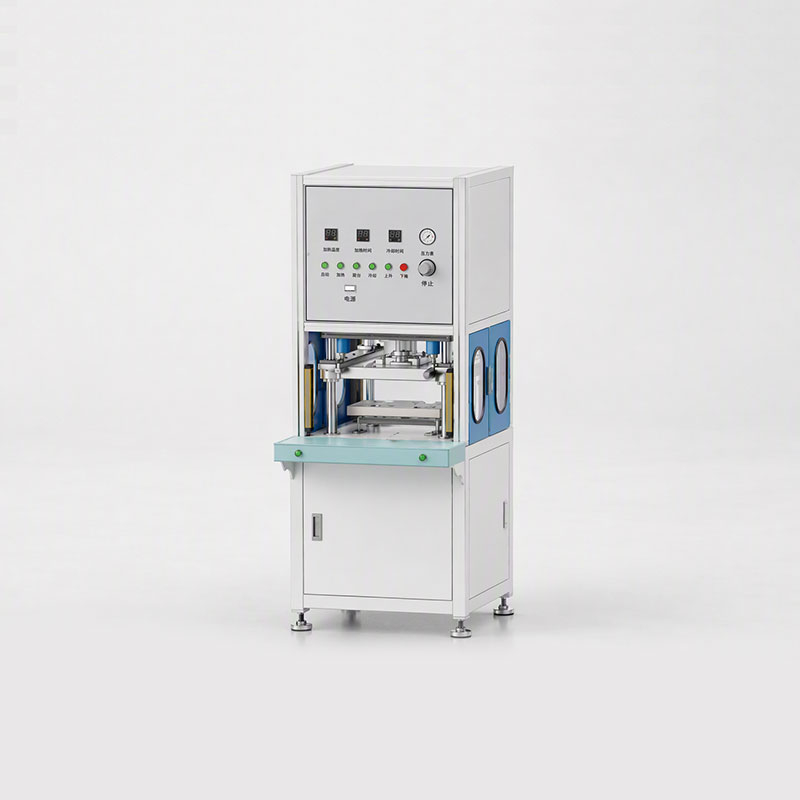

1. This is a manual punching machine, designed for Al-laminate film forming of pouch lithium-ion cells.
2. Main Components
a. Upper section: booster cylinder, operation panel, aluminum-alloy frame door frame.
b. Middle section: four upright posts, mould mounting top plate, mould bottom mounting vertical plate (working area).
c. Lower section: force-multiplication cylinder, guide posts, bearings, welded frame with baked-paint finish.
Technical Specifications:
1. Applicable Mould Size: Max. mould mounting dimension 450×350 mm (L×W)
2. Capacity: 700-900 PCS/H
3. Feeding Mode: Manual loading
4. Forming Depth Accuracy: ±0.05 mm
5. Equipment Availability: ≥98%
6. Product Yield Rate: ≥99%
7. Power Supply: AC220V / 50Hz
8. Upper-plate Booster Cylinder: 10 T
9. Lower-plate Force-Multiplication Cylinder: 2 T
10. Machine Weight: Approx. 650 Kg
11. Table Size: 800 mm(L) × 220 mm(W)
12. Overall Machine Dimension: 800 mm(L) × 900 mm(W, including table) × 1950 mm(H)
