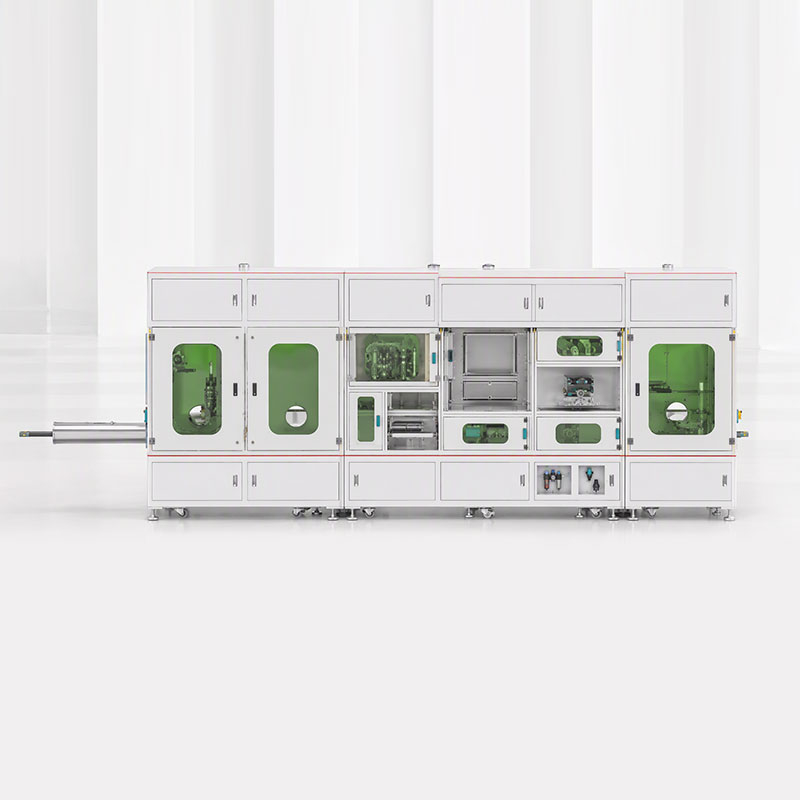

Designed for filling and pre-sealing of small pouch cells (Laptop,Phone,Tablet,Bluetooth battery, etc.). Adopts vacuum filling ensures good electrolyte wettability.
Functions: automatic tray unloading & feeding, barcode scanning & pre-weighing, automatic filling, vacuum standing, vacuum pre-sealing, post-weighing & scanning, NG automatic rejection, and automatic unloading/tray packing.
Specifications:
Dimension | 6.5×3.5×2.6 m |
Efficiency | 15-25 PPM |
Yield | ≥99.5% |
Injection weight | 1-50 g |
Injection accuracy | ±0.7% |
Stability | CPK≥1.33 |
Uptime rate | ≥98% |
Application | Mini Pouch Cell |
Features:
1. Wide compatibility for pouch batteries of various sizes
2. CCD positioning, dual‑side barcode scanning, robot loading/unloading, variable‑dose injection pump; quick model change via parameter adjustment & jig repositioning
3. Linear or rotary‑table layout, space‑saving and easy for maintenance
4. Vacuum injection for better electrolyte filling effect
5. Flip‑out sealing chamber for convenient sealing head maintenance
6. Independent weighing system, supports MES connection or offline operation
