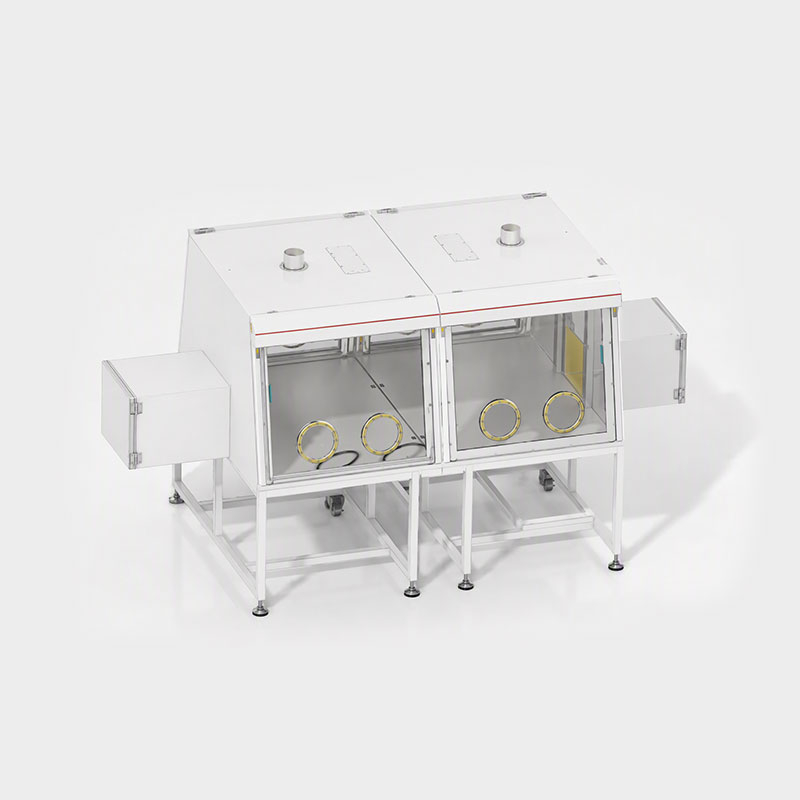

Four‑Station Glove Box

This machine is suitable for battery electrolyte filling, holding and pre-sealing. Glove box frame is built of 40-square steel tubes, with stainless-steel chamber panels in modular assembled construction. Transparent PETG sheets are used for viewing windows. It consists of two chamber sections, each with one single-side station. Transfer antechambers are equipped on both front and rear sides for easy mechanism disassembly and assembly.

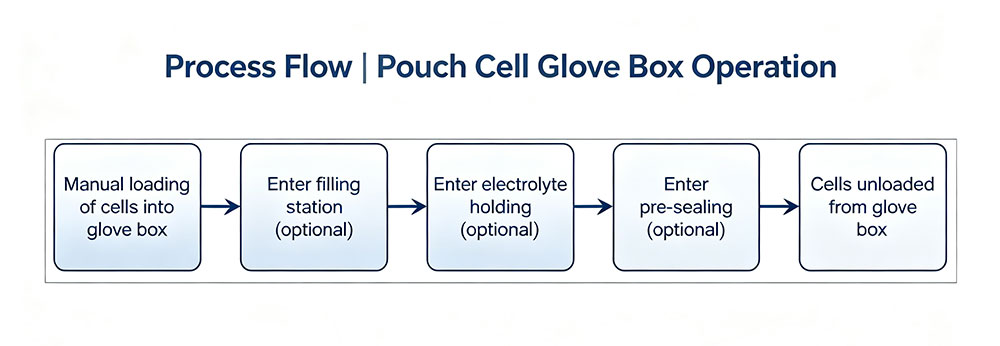

Equipment Process Flow:

Specifications:

1. Power Supply: Single-phase AC220V, 50Hz, Power ≤1.2 kW

2. Air Pressure: 0.4-0.8 MPa

3. Vacuum Degree: ≤- 0.095 MPa, 50 L/min (customer-supplied)

4. Overall Dimension: approx. L2.8 m × W1.2 m × H1.5 m

5. Equipment Weight: approx. 300 kg

6. Transfer antechamber dimension: approx. 400×400×400 mm

7. Inner chamber dimension: approx. L2.8 m × W1.2 m × H0.88 m

Accessory List (Delivered with Unit)：
