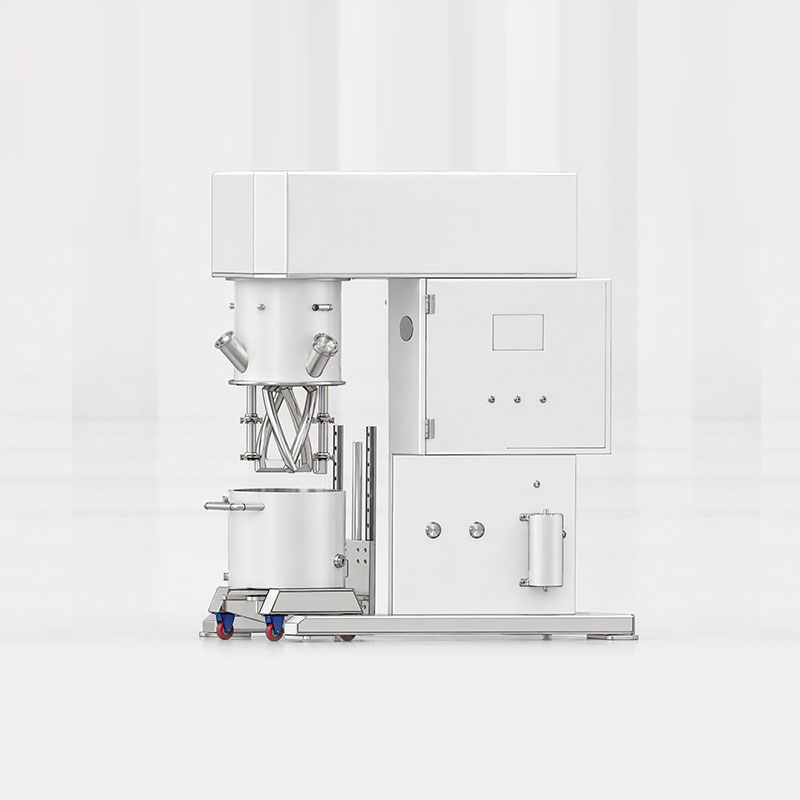

20L Dual‑Planetary High‑Speed Power Mixer

No.

Item

Model & Specification

1

Reducer

Helical-gear reducer, RF573KW

2

Motor

Low-speed: 3KW, 4-pole, 1 unit;

High-speed: 4KW, 4-pole, 1 unit

3

Inverter

3KW × 1 unit

4

Temperature Sensor

Pt100 (high temperature-measurement accuracy)

5

Linear Guide

HIWIN

6

Skeleton Oil Seal

Fluoroplastic skeleton oil seal

7

Touch Screen

10-inch

8

PLC

S-200

9

Electrical Components

Low-voltage electrical components

10

Mechanical Seal

Cemented-carbide mechanical seal

11

Gear

Helical gear transmission, hardened tooth surface with precision grinding

12

Lubricating Grease

Special grease for high-speed bearings, temperature resistance up to 600 ℃

No.

Item

Specification

1

Vacuum Degree

≤-0.095 MPa, dynamic pressure holding for 2 h, leakage≤10 kPa

2

Structure Type

Single-arm Type

3

Rotation Speed (r/min)

Revolution: 0~38 r/min;

Rotation: 0~75 r/min (VFD);

High-speed: 0~5300 r/min (VFD)

4

Low-speed Shaft

Two-shaft twisted-ribbon agitator

5

High-speed Shaft

Single high-speed shaft with two Φ65 dispersion discs

6

Lifting Method

Linear-guide material-pot electric lifting (0.37 kw gear motor)

7

Lifting Height

300 mm

8

Temperature Measuring Method

PT100 sensor on pot wall in direct contact with material

9

Total Power (KW)

8 kw

10

Power Supply

AC: 3×380V, 50Hz

11

Overall Dimension

L1350 × W800 × H1750 (mm)

12

Weight (kg)

Approx. 900 kg

No.

Item

Specification

1

Vessel Size

(ID×Inner Height, mm)

Φ300×350 (Design Volume: 24.7 L)

2

Volume (L)

20 L

3

Design Pressure (MPa)

Inner cylinder: −0.098 MPa;

Jacket: 0.6 MPa

4

Design Temperature (℃)

−10 ~ +200 ℃

5

Main Material

Material-contact part: SUS304; Jacket: 304

6

Vessel Thickness (mm)

Inner cylinder: δ5 mm (actual measured thickness after machining); Jacket: δ3 mm

7

Temperature Control Mode

Water-cooling jacket

8

Discharge Type

Ball valve

9

Moving Mode

Manual

10

Quantity of Vessel

1 pc
